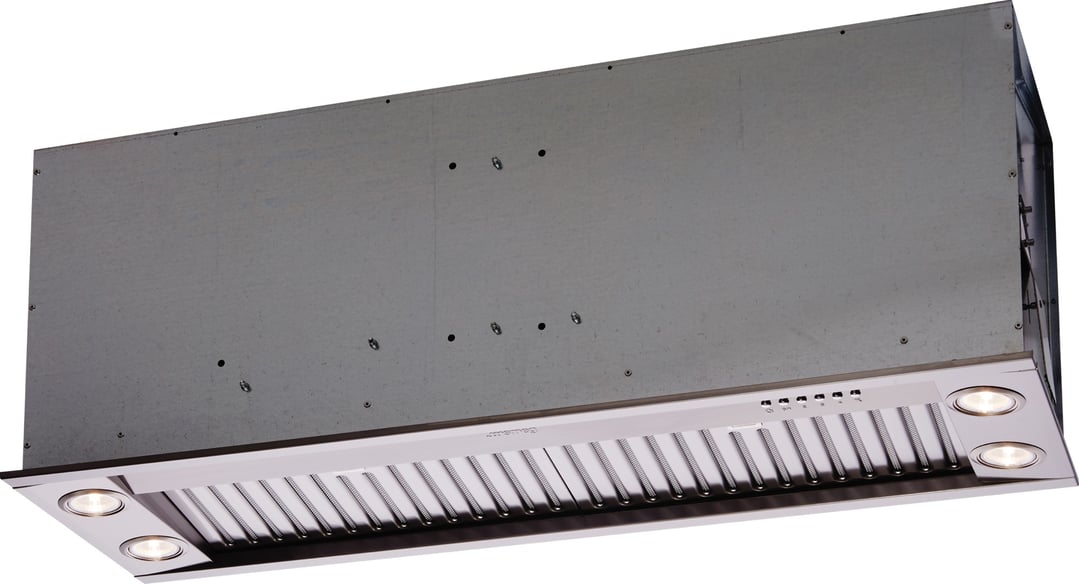

Smeg Classic 90cm Concealed Undermount Rangehood KDIAM90AX
KDIAM90AX
AVAILABLE TO ORDER FROM SMEG
Shipping Options
Enter your suburb and/or postcode below for delivery information:
Product Highlights
- Air Flow: 1555 m³/h(M³/H)
- Auto Shutoff: Yes
- Boost Function: Yes
- Material: Stainless steel
- Rangehood Size (cm): 90
- Rangehood Type: Undermount
- Timer: Yes
- Warranty (Years): 2
SMEG KDIAM90AX | 90CM UNIVERSALE UNDERMOUNT RANGEHOOD STAINLESS STEEL
Smeg Rangehood designed in Italy, has functional characteristics of quality with a design that combines style and high technology. Designed with Smeg's Universale aesthetics and stainless steel finish, this integrated rangehood is sure to be a great addition to your kitchen. It features two baffle anti-grease filters with a capacity of 1555m³/hr, four LED lights to illuminate your cooking area and 3 speed settings to choose from plus intensive boost speed with just a push of a button.
EXTREME AIR EXTRACTION
Careful research and development ensures that Smeg rangehoods are super-quiet with maximum extraction performance. These models offer the highest possible performance for extreme cooking conditions.
LOW NOISE
The design of the fan, motor and housing contribute to streamlined airflow which reduces noise levels during operation, for a more peaceful kitchen environment.
TWIN MOTOR
Twin motor model rangehoods feature double air uptake and dual impellors for fast air movement and the maximum footprint for clearance. Twin motor rangehoods double the effectiveness of the appliance.
DISHWASHER SAFE STAINLESS STEEL FILTERS
Smeg stainless steel honeycomb filters with stainless steel latch may be washed in the dishwasher for ultimate convenience. The 4 ply mesh effectively captures grease and grime whilst maintaining optimum airflow.
Specifications
Global
- EAN: 8017709217082
- Model Number: KDIAM90AX
- Rangehood Type: Undermount
General
- Colour: Stainless Steel
- Control Type: Electronic buttons
- Made In: Italy
- Material: Stainless steel
- Installation: Built-in installation
Features
- Boost Function: Yes
- Timer: Yes
Size
- Duct Diameter (mm): 150
- Rangehood Size (cm): 90
Performance
- Air Flow : 1555 m³/h(M³/H)
- Speed Levels: 4
Safety Features
- Auto Shutoff: Yes
- Dishwasher Safe: Yes
Lighting Features
- Lighting Type: LED
- Number Of Lights: 4
Filter Information
- Filtration : Stainless steel baffle filter
- Number Of Filters: 2
Energy Specification/Power
- Motor Power (W): 550
- Motor Type: Single Motor
- Noise Level (dBa): 74
- Voltage (V): 220-240

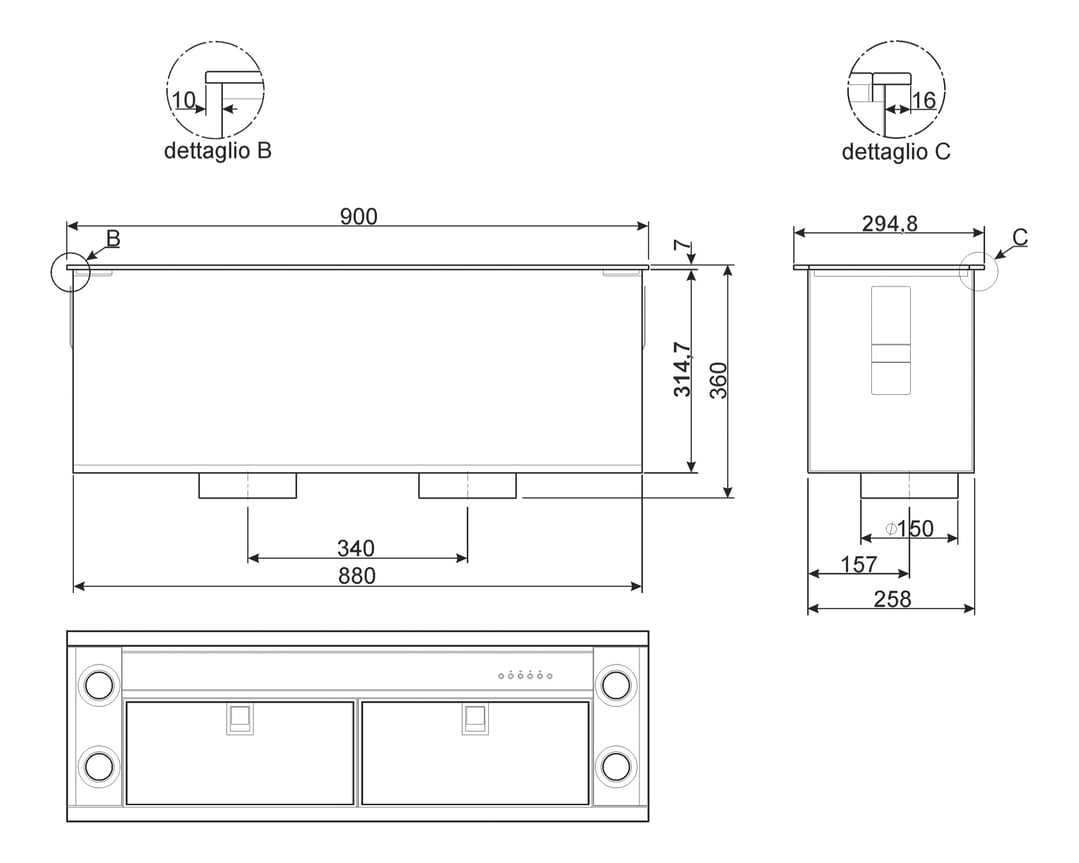

Dimensions
- Depth: 295mm
- Height: 315mm
- Width: 900mm
Weight
- Weight (Kg): 19.8
In The Box & Warranty
- Included: 2 x Stainless steel baffle filters
- Warranty (Years): 2
Manuals
Why Buy?
Hidden extraction power that keeps your kitchen air fresh and clean

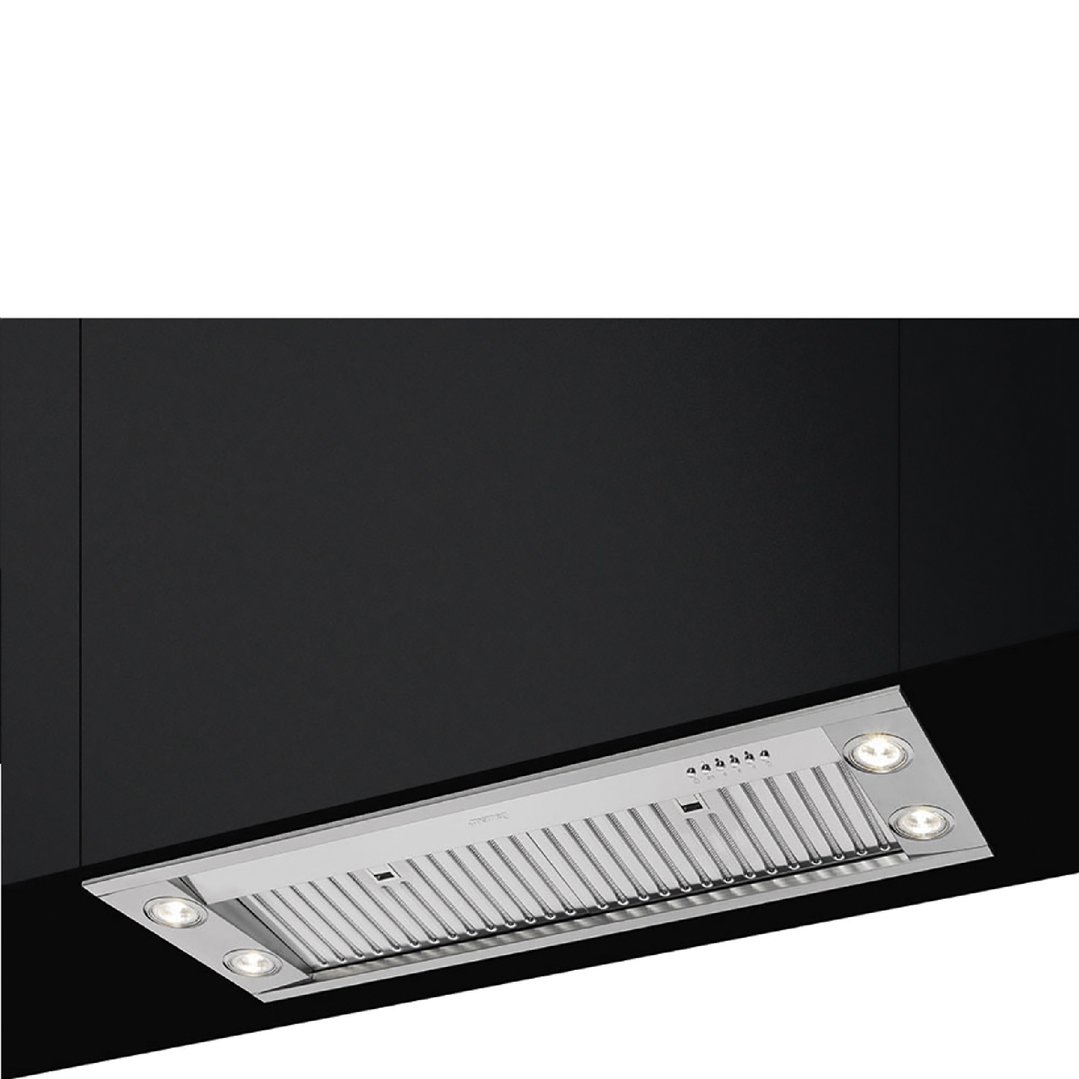

This concealed undermount rangehood works silently behind the scenes to remove cooking odours, steam and grease before they spread through your home, while four LED lights brighten your cooktop for safer, more comfortable cooking.
The powerful twin motor system moves air at 1555m³ per hour, clearing even the strongest cooking smells from stir-fries, grilling or frying. Dishwasher-safe stainless steel filters capture grease effectively while staying easy to clean, and the quiet operation means you can hold conversations while cooking without raising your voice.
The concealed design integrates seamlessly into your cabinetry for a clean, uncluttered kitchen look, while three speed settings plus intensive boost let you match the extraction power to what you're cooking. The reliable Italian engineering and stainless steel construction handle daily use without losing performance.
Buy this if…
- You want powerful extraction without visible rangehood bulk
- Your kitchen connects to living areas and you need effective odour control
- You cook frequently with strong-smelling ingredients or high-heat methods
- You prefer quiet appliances that don't interrupt conversation
- You want easy-clean filters that go straight in the dishwasher
