Key Features
- Spacious interior for ample food storage.
- Four separate doors for convenient access to fresh and frozen items.
- Provides easy access to filtered water and ice without opening the doors.
- Adaptive cooling for maintaining optimal temperatures and food freshness.
- Designed to be energy-efficient, helping you save on energy costs.
Fisher & Paykel 690L Series 7 Quad Door Refrigerator Freezer Ice & Water, RF730QZUVB1

Our largest capacity Quad Door model has ample storage space and Variable Temperature Zone technology, with an elegant black glass finish.
- • Elegant matte black glass finish, with recessed handles for a streamlined look
- • Extra large capacity, with Variable Temperature Zone technology for optimal food storage
- • ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- • Convenient access to fresh, chilled water and ice with slimline water dispenser and internal ice maker
KEY FEATURES:
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.
VARIABLE TEMPERATURE ZONE
When it comes to optimal food preservation, one temperature does not fit all. Variable Temperature Zones give you full control over the way you care for food. At the touch of a button, easily convert the lower right compartment to Freezer, Soft Freeze, Chill or Fridge mode, to best suit different types of food. Adjust zones for maximum every day convenience, or change modes to provide additional chilling capacity for special occasions.
CHILL MODE
Keep ready-to-eat food fresher for longer with Chill Mode (-1.5 to 0°C). Chill Mode is a perfect solution for everyday life. It keeps meats, poultry and fish as cool as possible, retaining vital freshness and helps food retain its condition for around three times longer than Fridge Mode. It’s also great for entertaining. Set a zone to Chill Mode to quickly bring beverages down to serving temperature.
SOFT FREEZE MODE
Soft freeze (-10 to -6°C) is perfect for food that will be consumed soon – but not right away. Set a zone to Soft Freeze Mode and enjoy optimal food storage and everyday convenience. Soft frozen food requires only a quick thaw rather than a full defrost. It is the ideal setting for easy portioning, such as cut loaves of bread, soups and even cured meats, or for serving straight from the compartment.
ACTIVESMART™ FOODCARE
ActiveSmart™ Foodcare learns how you live. It is technology which understands how you use your fridge and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off when you need to free up freezer space, or during busy times, use the boost feature to increase ice production.
Specifications
Description
- Search Snippet: The Fisher & Paykel RF730QZUVB1 features Variable Temperature Zone technology with four convertible modes for optimal food storage.
Global
- EAN: 9415112260814
- Fridge Type: French Door Refrigerators
- Model Number: RF730QZUVB1
General
- Colour: Black
- Door Hinge: French
- Material: Built using robust, quality materials, with stainless steel exteriors and solid glass for the interior shelving
- Number Of Doors: 4
- Number Of Shelves: 8
Features
- Adjustable Leveling Legs: Yes
- Counter Depth Design: No
- Door Alarm: Yes
- Frost Free: Yes
- Humidity-Controlled Crisper: Yes
- Ice Dispenser: No
- LED Lights: Yes
- Plumbing Required: Yes
- Spill-Safe Shelves: No
- Water Filter: Yes
Size
- Fridge Capacity (L): 453
- Total Capacity (L): 690
Cooling Technology
- Temperature Control Type: Touch Controls
Safety Features
- Child Lock: No
Freezer Information
- Freezer Door Type: Swing Door
- Plastic Bin: Yes
Freezer Compartment
- Ice Cube Tray: Yes
Energy Specification/Power
- Energy Consumption (Kwh/year): 587
- Energy Rating: 3 Star
Fridge Information
- Fridge Door Racks: 6

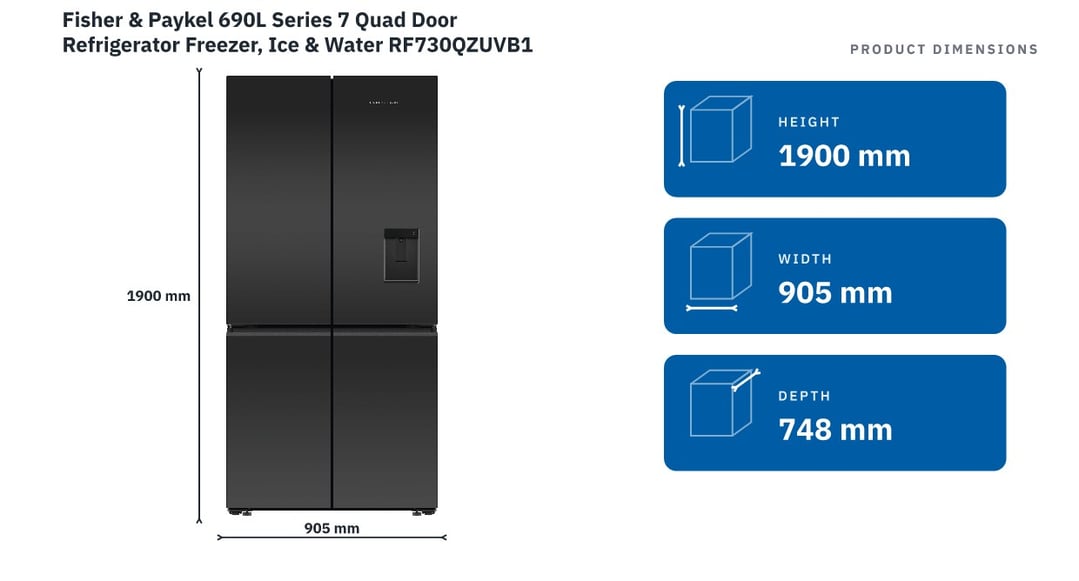

Dimensions
- Depth: 748mm
- Height: 1900mm
- Width: 905mm
In The Box & Warranty
- Included: 90.5cm 690L Ice & Water Freestanding Quad Door Fridge, Black Glass
- Warranty (Years): 2
Manuals
Why Buy?
Spacious family storage with clever temperature control
This 690L quad door fridge gives busy households the space and flexibility to store everything properly, with Variable Temperature Zone technology that adapts one compartment between freezer, soft freeze, chill or fridge modes depending on what you need that week.
No more cramming groceries wherever they fit or watching food spoil because it wasn't stored at the right temperature. The four separate compartments keep fresh and frozen items organised and easy to reach, while ActiveSmart technology constantly adjusts conditions to help food stay fresher for longer. The built-in water and ice dispenser means cold drinks are always ready without opening doors and letting precious cold air escape.
The sleek matte black glass finish suits modern kitchens, while the energy-efficient design keeps running costs reasonable for such a large appliance. At 90.5cm wide, it provides serious storage capacity without overwhelming your kitchen layout, and the quiet operation means it won't disrupt your daily routine.
Buy this if…
- You need substantial fridge space for a large or busy household
- You want flexible storage that adapts to different food types
- You're tired of food spoiling before you can use it
- You want convenient access to filtered water and ice
- You prefer organised storage with separate compartments for different items
